NPR Lookup Reference

Client/Server Lookups

The technique to select one, or a list of records from a DPM and detail segment via selection on a field that allows the user to use “lookups” varies from module to module. In some modules, you should use NO index and a selection on URN. In others, you must use an index and a selection on a subscript of the index file. Here is a table with the values to use for several DPMs to save you time and trouble.

DPM	Detail Segment	Index	Field and Comments
ABS.PAT	main	abs.pat.number.x	account.number
ADM.PAT	main	do not use one	urn
BAR.PAT	top	bar.acct.number.x	number

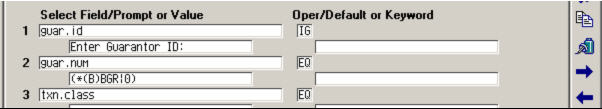

BAR.PAT	top	bar.acct.guar.index	select on guar.id with IG then set up select as below:
LAB.L.SPEC	various	do not use one	urn
LAB.B.SPEC	various	do not use one	urn
LAB.M.SPEC	various	do not use one	urn
PHA.RX	main	pha.rx.number.x	number
PHA.RX	main	pha.rx.patient.index	PHA.PAT.patient IG then patient EQ (/[“aa”]) does not work for LI
PHA.RX	main	pha.rx.number.x	urn Select urn IG and number EQ (c.urn)
NOTE: Do not write a PHA.RX report with a select on urn. Your value of c.urn will end up being the “number” field and you will therefore select the RX from a different patient if the urn of an rx matches the “number” of the patient’s RX you selected. This is an unfortunate result of the ID code attached to the urn field, which returns the value of “number” to c.urn when the ID program runs.
PP.PER	main	pp.employee.name.index	sort.name
PP.PER	main	pp.employee.ss.si.index	ss.number

MAGIC Record Lookups

DPM	Detail Segment		Index		Field and Comments
ABS.PAT	abs.pat		abs.pat.number.x		account.number
ADM.PAT	adm.patient.file		do not use one		urn
BAR.PAT	bar.acct		bar.acct.number.x		number
BAR.PAT	bar.acct		bar.acct.guar.index		select on guar.id with IG then set up select as below:
BAR.RPT	do not use one		list.urn
ID=%Z.id.non.dict.rev.color(^?BRI[TYPE],A,”File#”:12L_(“Printed ID=On”:21L)_(“By”:10L),”CD:12L_(%Z.date.out(*BR[CD]|1):9L)_(*BR[CD]|2:12L)_*BR[CD]|3″) ID.ARG=BR TYPE = GSTMTS, BD XFER, BILLS, CL BILLS, CPU, FORMS, LETTERS(TX) SEL.RPTS or STMTS
LAB.L.SPEC	Various		do not use one		urn
LAB.B.SPEC	various		do not use one		urn
LAB.M.SPEC	various		do not use one		urn
MRI.PAT	mri.patient.file		do not use one		mri.urn EQ or IG then medical.record EQ c.mri.urn
PHA.RX	pha.rx.file		pha.rx.number.x		number
PHA.RX	pha.rx.file		pha.rx.patient.index		PHA.PAT.patient IG then patient EQ (/[“aa”]) does not work for LI
PHA.RX	pha.rx.file		pha.rx.number.x		urn Select urn IG and number EQ (c.urn)
NOTE: Do not write a PHA.RX report with a select on urn. Your value of c.urn will end up being the “number” field and you will therefore select the RX from a different patient if the urn of an rx matches the “number” of the patient’s RX you selected. This is an unfortunate result of the ID code attached to the urn field, which returns the value of “number” to c.urn when the ID program runs.
PP.PER	pp.employee.file		pp.employee.name.index		sort.name
PP.PER	pp.employee.file		pp.employee.ss.si.index		ss.number
RADRW.EXAM	radiology.exam.information		do not use one		rad
SCH.APPT	sch.appointment		do not need one		patient IG and mri.urn EQ /[“ea”]
PC File ID	%Z.dos.link.long(1)
